Printing Technology: FDM, Accuracy on the X-axis, Y: 12.5 microns, Z axis accuracy: 5 microns Materials: PLA, ABS, FLEX, Nylon, PC, PP, TPU, CPE, min. layer thickness: 20 microns Desktop: 223x224x205 mm, table material: glass, heating the table Design: extruders: 1, Extruder temperature: 180 - 260 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
open-ended |
Frame material |
Aluminium |
Min. layer thickness |
20 microns |
Printable material |
PLA, ABS, FLEX, Nylon, PC, PP, TPU, CPE |
Material Thickness |
2.85 mm |
Power Utilized |
221 W |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
12.5 microns |
Positioning accuracy of the axis Z |
5 micron |
Extruder temperature |
180 — 260 °C |
Max. printing speed |
300 mm/s |

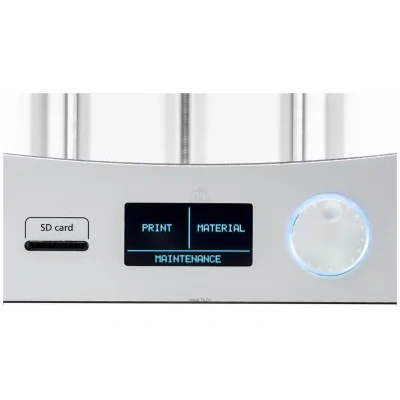

Displays |
|
MANAGEMENT |
Button |
Interfaces |
USB, microSD/SD card |
File formats supported |
.gcode, .stl, .obj, .3mf |
Pauses in printing |
|
Work Desk |
|
Length of printing area |
223 mm |
Wideness of the printing area |
223 mm |
Height of the printing area |
205 mm |
Table material |
Glass |
Warm the table |
|
Temperature of the table |
50 — 100 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Nozzle |
.4, 0.25, 1.6, 3.8 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
357 mm |
Width |
342 mm |
Heights |
388 mm |
Weight (disambiguation) |
11.3 kg |
