Printing Technology: FDM, Accuracy on the X-axis, Y: 12.5 microns, Z axis accuracy: 2.5 microns Materials: PLA, ABS, PVA, FLEX, Nylon, PC, PP, TPU, CPE, min. layer thickness: 20 microns Desktop: 215x216x200 mm, table material: glass, heating the table Design: extruders: 2, Extruder temperature: 180 - 280 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
2 |
Corpus |
open-ended |
Frame material |
Aluminium |
Min. layer thickness |
20 microns |
Printable material |
PLA, ABS, PVA, FLEX, Nylon, PC, PP, TPU, CPE |
Material Thickness |
2.85 mm |
Power Utilized |
221 W |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
12.5 microns |
Positioning accuracy of the axis Z |
2.5 microns |
Extruder temperature |
180 — 280 °C |
Max. printing speed |
300 mm/s |
Displays |
|
MANAGEMENT |
Button |
Interfaces |
USB, Wi-Fi, Ethernet |
File formats supported |
.stl, .obj, .3mf |
Pauses in printing |
|
Work Desk |
|
Length of printing area |
215 mm |
Wideness of the printing area |
215 mm |
Height of the printing area |
200 mm |

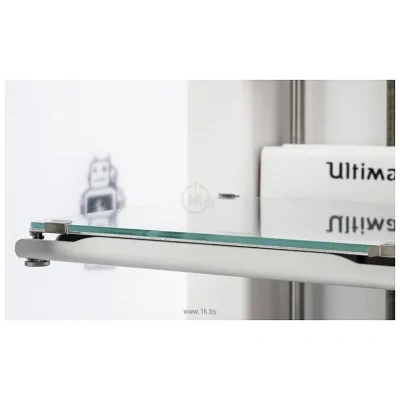

Table material |
Glass |
Warm the table |
|
Temperature of the table |
20 — 100 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Nozzle |
.4, 0.8 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
380 mm |
Width |
342 mm |
Heights |
389 mm |
Weight (disambiguation) |
10.6 kg |
