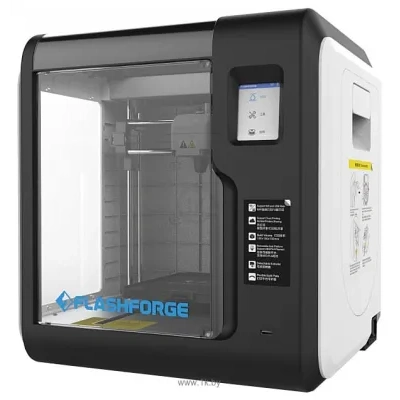

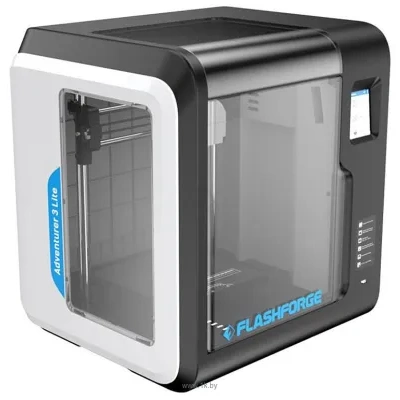

Printing Technology: FDM, Accuracy on the X-axis, Y: 11 microns, Z axis accuracy: 2.5 microns Materials: PLA, ABS, Wood, min. layer thickness: 100 microns Desktop: 150x160 x180 mm, heating the table Design: extruders: 1, Extruder temperature: 20 - 240 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
closed-ended |
Frame material |
Plastics |
Min. layer thickness |
100 microns |
Printable material |
PLA, ABS, Wood |
Material Thickness |
1.75 mm |
Power Utilized |
150 W |
Colors |
black, white |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
11 microns |
Positioning accuracy of the axis Z |
2.5 microns |
Extruder temperature |
20 — 240 °C |
Max. printing speed |
100 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, Wi-Fi, Ethernet |
File formats supported |
.stl, .obj, .3mf, .fpp |
Cameras |
|
Pauses in printing |
|
Work Desk |
|
Length of printing area |
150 mm |
Wideness of the printing area |
150 mm |
Height of the printing area |
150 mm |

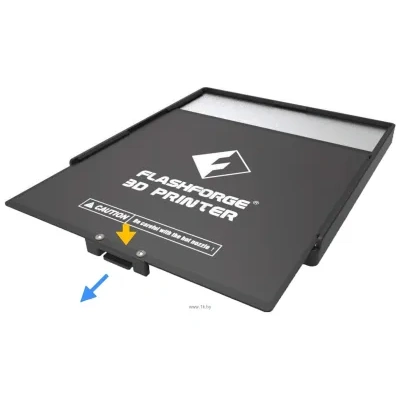

Warm the table |
|
Temperature of the table |
100 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|

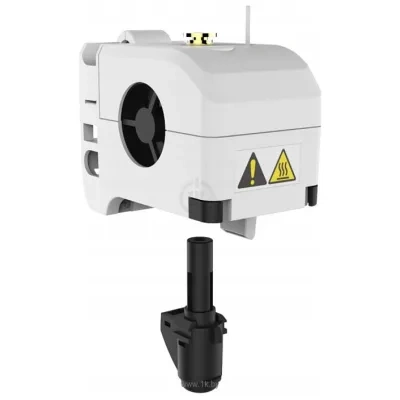

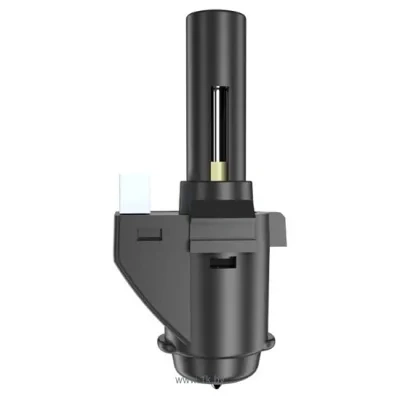

Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
388 mm |
Width |
380 mm |
Heights |
405 mm |
Weight (disambiguation) |
9 kg (disambiguation) |
