Printing Technology: FDM, Accuracy on the X-axis, Y: 12.5 microns, Z axis accuracy: 2 microns Materials: PLA, ABS, HIPS, PETG, TPU, min. layer thickness: 50 microns Desktop: 400 x 450 mm, heating the table Design: extruders: 1, Extruder temperature: 260 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
open-ended |
Frame material |
steel |
Min. layer thickness |
50 microns |
Printable material |
PLA, ABS, HIPS, PETG, TPU |
Material Thickness |
1.75 mm |
Colors |
black |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
12.5 microns |
Positioning accuracy of the axis Z |
2 microns |
Extruder temperature |
260 °C |
Max. printing speed |
100 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
microSD/SD card |
File formats supported |
.gcode, .stl, .obj, .jpg |
Cameras |
|
Pauses in printing |
|
Control of residual plasticity |
|
Thread end detection sensor |
|
Work Desk |
|

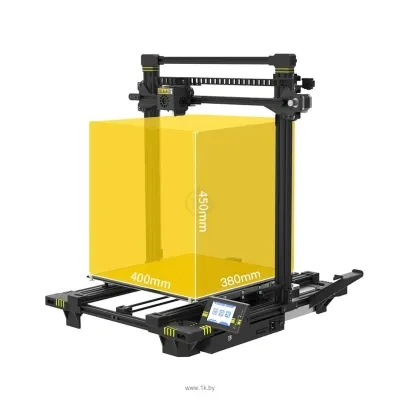

Length of printing area |
400 mm |
Wideness of the printing area |
400 mm |
Height of the printing area |
450 mm |
Warm the table |
|
Temperature of the table |
100 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
651 mm |
Width |
612 mm |
Heights |
720 mm |
