Printing Technology: FDM, Accuracy on the X-axis, Y: 11 microns, Z axis accuracy: 2.5 microns Materials: PLA, ABS, FLEX, Nylon, PETG, min. layer thickness: 50 microns Desktop: 300x250 x200 mm, heating the table Design: extruders: 2, Extruder temperature: 300 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
2 |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
50 microns |
Printable material |
PLA, ABS, FLEX, Nylon, PETG |
Material Thickness |
1.75 mm |
Power Utilized |
500 W |
Colors |
black |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
11 microns |
Positioning accuracy of the axis Z |
2.5 microns |
Extruder temperature |
300 °C |
Max. printing speed |
200 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |

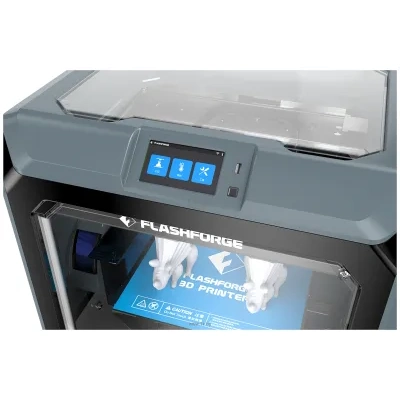

touchscreen display |
Interfaces |
USB, Wi-Fi, Ethernet |
File formats supported |
.stl, .obj, .3mf |
Cameras |
|
Pauses in printing |
|
Thread end detection sensor |
|
Work Desk |
|
Length of printing area |
300 mm |
Wideness of the printing area |
250 mm |
Height of the printing area |
200 mm |
Warm the table |
|
Temperature of the table |
120 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
627 mm |
Width |
485 mm |
Heights |
615 mm |
Weight (disambiguation) |
40 kg (disambiguation) |
