Printing Technology: FDM, Accuracy on the X-axis, Y: 5.08 microns, Z axis accuracy: 1.25 microns Materials: PLA, ABS, HIPS, PVA, Nylon, PC, PP, PETG, TPU, min. layer thickness: 50 microns Desktop: 600 x 500 mm, table material: glass, heating the table Design: extruders: 2, Extruder temperature: 420 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
2 |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
50 microns |
Printable material |
PLA, ABS, HIPS, PVA, Nylon, PC, PP, PETG, TPU |
Material Thickness |
1.75 mm |
Power Utilized |
4,000 W |
Colors |
grey, blue |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
5.08 microns |
Positioning accuracy of the axis Z |
1.25 microns |
Extruder temperature |
420 °C |
Max. printing speed |
120 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |

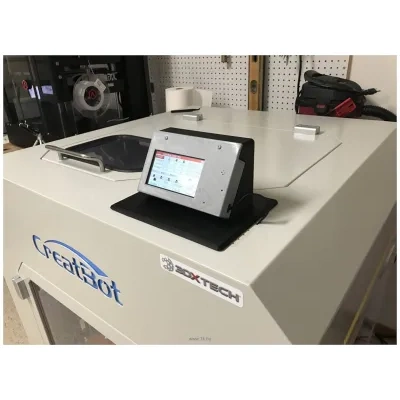

touchscreen display |
Interfaces |
USB |
File formats supported |
.gcode, .stl, .amf, .obj |
Pauses in printing |
|
Thread end detection sensor |
|
Work Desk |
|
Length of printing area |
600 mm |
Wideness of the printing area |
600 mm |
Height of the printing area |
600 mm |
Table material |
Glass |
Warm the table |
|
Temperature of the table |
100 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
915 mm |
Width |
845 mm |
Heights |
1 085 mm |
Weight (disambiguation) |
125 kgs |
