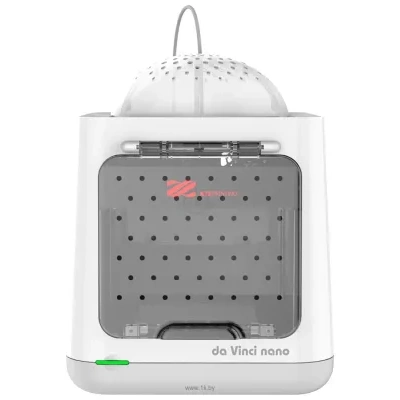

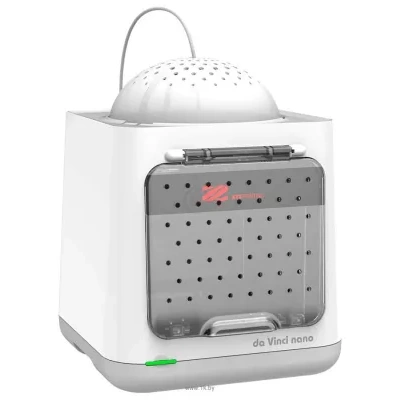

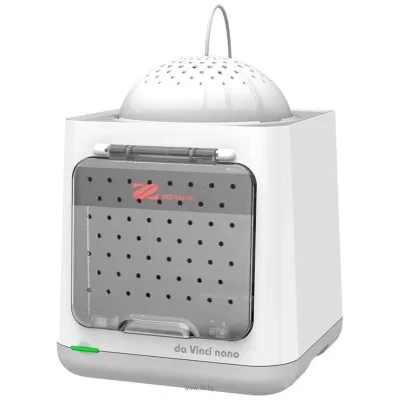

XYZprinting da Vinci Nano w
Printing Technology: FDM, Accuracy on the X-axis, Y: 12.5 microns, Z axis accuracy: 1 micron Materials: PLA, PETG, min. layer thickness: 100 microns Desktop: 120x130 x140 mm, table material: aluminium Design: extruders: 1
Printing Technology: FDM, Accuracy on the X-axis, Y: 12.5 microns, Z axis accuracy: 1 micron Materials: PLA, PETG, min. layer thickness: 100 microns Desktop: 120x130 x140 mm, table material: aluminium Design: extruders: 1
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
closed-ended |
Min. layer thickness |
100 microns |
Printable material |
PLA, PETG |
Material Thickness |
1.75 mm |
Colors |
White |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
12.5 microns |
Positioning accuracy of the axis Z |
1 micron |
Max. printing speed |
30 mm/s |
Color Prints |
|
Displays |
|
Interfaces |
USB |
File formats supported |
.stl, .amf, .obj, .3w, .3mf, .ply, .igs, .stp |
Work Desk |
|
Length of printing area |
120 mm |
Wideness of the printing area |
120 mm |
Height of the printing area |
120 mm |
Table material |
Aluminium |
Warm the table |
|
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
280 mm |
Width |
378 mm |
Heights |
355 mm |
Weight (disambiguation) |
4.7 kg |
