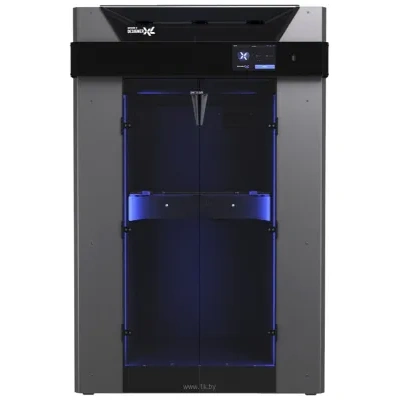

Printing Technology: FDM Materials: PLA, ABS, HIPS, PVA, PC, PET, PP, PETG, TPU, PEEK, SBS, ASA, WAX, Nylon (PA), min. layer thickness: 10 microns Desktop: 360x361 x610 mm, table material: aluminium, heating the table Design: extruders: 1, Extruder temperature: 410 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
10 micron |
Printable material |
PLA, ABS, HIPS, PVA, PC, PET, PP, PETG, TPU, PEEK, SBS, ASA, WAX, Nylon (PA) |
Material Thickness |
1.75 mm |
Power Utilized |
2,200 W |
Colors |
Grey |
Technical Specifications |
|
Extruder temperature |
410 °C |
Max. printing speed |
0.36 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, Wi-Fi, Ethernet |
File formats supported |
.gcode, .stl, .amf, .obj, .plgx, .plg, .3ds, .plgs, .ppf |
Cameras |
|
Work Desk |
|
Length of printing area |
360 mm |
Wideness of the printing area |
360 mm |
Height of the printing area |
610 mm |
Table material |
Aluminium |
Warm the table |
|
Temperature of the table |
150 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Nozzle |
0.5 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
605 mm |
Width |
650 mm |
Heights |
1,000 mm |
Weight (disambiguation) |
75 kg (disambiguation) |
