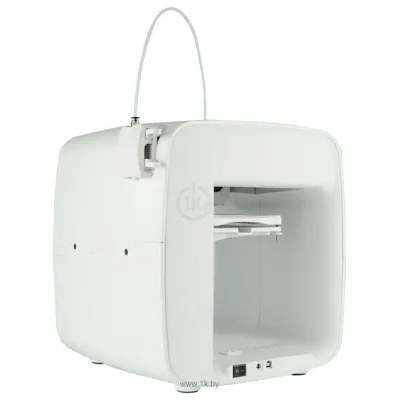

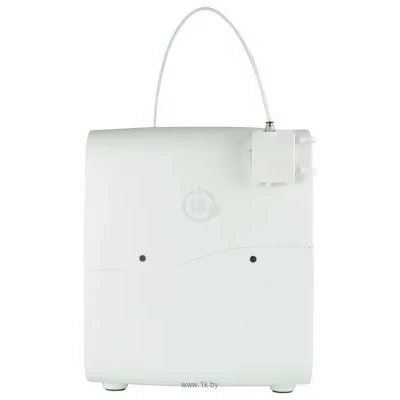

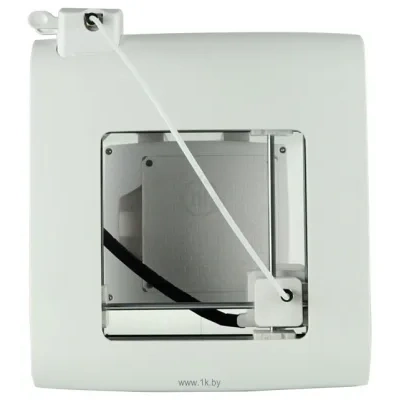

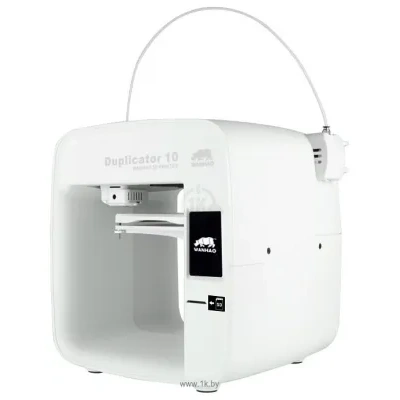

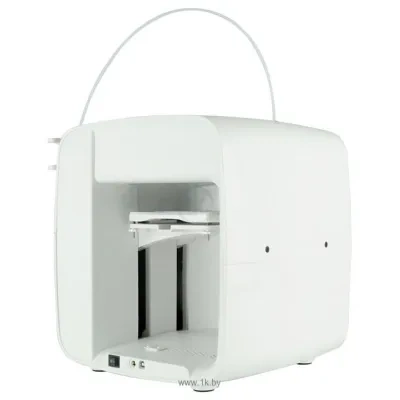

Wanhao Duplicator 10 (belyiy)
Printing Technology: FDM, Accuracy on the X-axis, Y: 12 microns, Z axis accuracy: 2.5 microns Materials: PLA, min. layer thickness: 50 microns Desktop: 116x117x125 mm, table material: plastics Design: extruders: 1
Printing Technology: FDM, Accuracy on the X-axis, Y: 12 microns, Z axis accuracy: 2.5 microns Materials: PLA, min. layer thickness: 50 microns Desktop: 116x117x125 mm, table material: plastics Design: extruders: 1
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
open-ended |
Min. layer thickness |
50 microns |
Printable material |
PLA |
Material Thickness |
1.75 mm |
Colors |
White |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
12 microns |
Positioning accuracy of the axis Z |
2.5 microns |
Max. printing speed |
80 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, microSD/SD card |
Cameras |
|
Pauses in printing |
|
Work Desk |
|
Length of printing area |
116 mm |
Wideness of the printing area |
116 mm |
Height of the printing area |
125 mm |

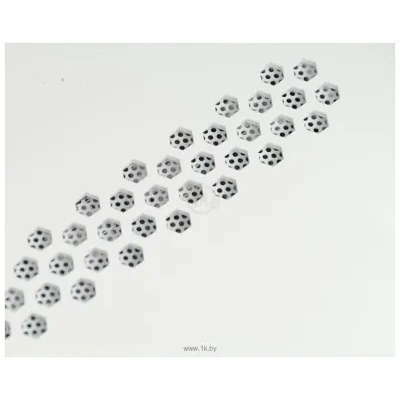

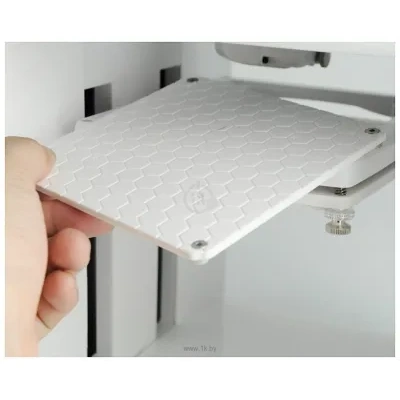

Table material |
Plastics |
Warm the table |
|
Components |
|

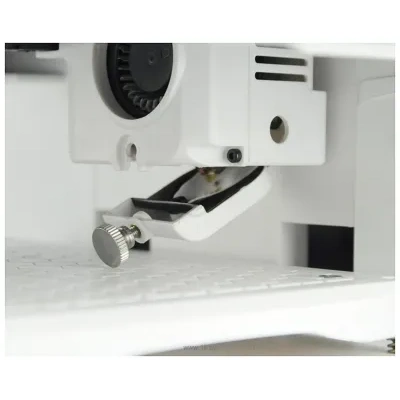

Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
435 mm |
Width |
285 mm |
Heights |
400 mm |
Weight (disambiguation) |
4 kg (disambiguation) |
