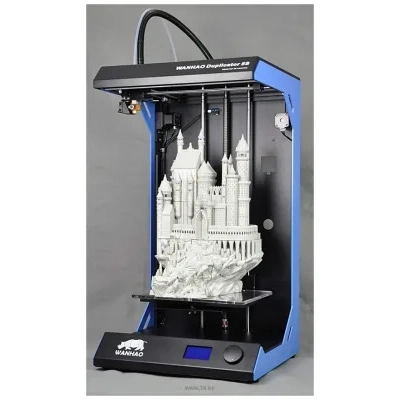

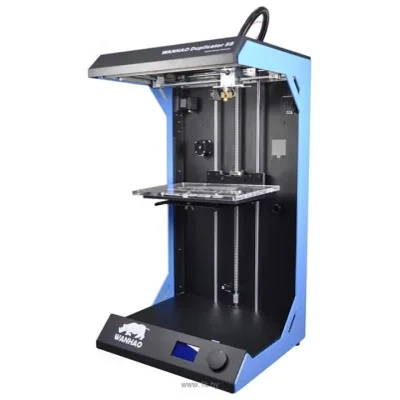

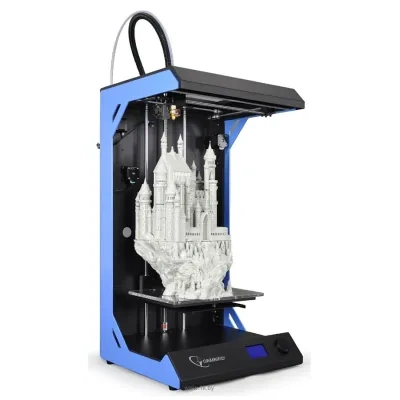

Wanhao Duplicator 5S
Printing Technology: FDM, Accuracy on the X-axis, Y: 10 microns, Z axis accuracy: 5 microns Materials: PLA, min. layer thickness: 20 microns Desktop: 295 x 195 mm Design: extruders: 1, Extruder temperature: 200 - 230 degC
Printing Technology: FDM, Accuracy on the X-axis, Y: 10 microns, Z axis accuracy: 5 microns Materials: PLA, min. layer thickness: 20 microns Desktop: 295 x 195 mm Design: extruders: 1, Extruder temperature: 200 - 230 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
open-ended |
Frame material |
steel |
Min. layer thickness |
20 microns |
Printable material |
PLA |
Material Thickness |
3 mm |
Colors |
black, blue |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
10 micron |
Positioning accuracy of the axis Z |
5 micron |
Extruder temperature |
200 — 230 °C |
Max. printing speed |
150 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
Button |
Interfaces |
USB, microSD/SD card |
File formats supported |
.stl |
Cameras |
|
Work Desk |
|
Length of printing area |
295 mm |
Wideness of the printing area |
195 mm |
Height of the printing area |
575 mm |
Warm the table |
|
Components |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
455 mm |
Width |
415 mm |
Heights |
810 mm |
Weight (disambiguation) |
28.8 kg |
