Wanhao Duplicator 8 Red Edition
Printing Technology: DLP, Accuracy on the X-axis, Y: 35 microns, Z axis accuracy: 75 microns Materials: Photopolymer, min. layer thickness: 35 microns Desktop: 192x120x180 mm, table material: aluminium
Printing Technology: DLP, Accuracy on the X-axis, Y: 35 microns, Z axis accuracy: 75 microns Materials: Photopolymer, min. layer thickness: 35 microns Desktop: 192x120x180 mm, table material: aluminium
General Characteristics |
|
Printing Technology |
DLP |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
35 microns |
Printable material |
Photopolymer |
Colors |
Grey |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
35 microns |
Positioning accuracy of the axis Z |
75 microns |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |

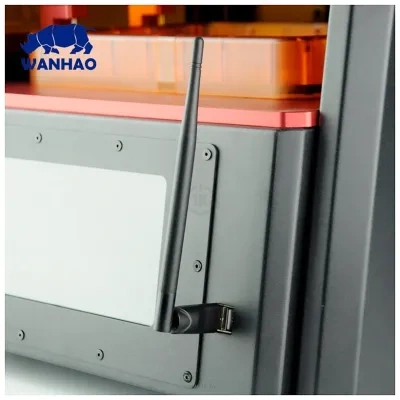

USB, Wi-Fi |
File formats supported |
.stl |
Cameras |
|
Thread end detection sensor |
|
Work Desk |
|
Length of printing area |
192 mm |
Wideness of the printing area |
120 mm |
Height of the printing area |
180 mm |
Table material |
Aluminium |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
470 mm |
Width |
460 mm |
Heights |
575 mm |
Weight (disambiguation) |
22 kg (disambiguation) |
