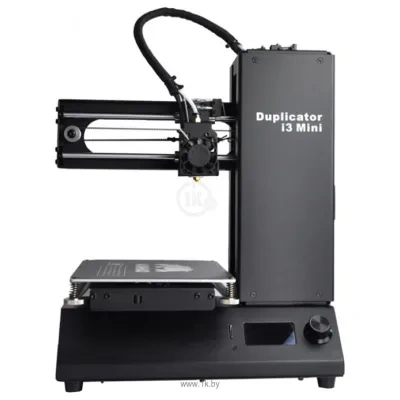

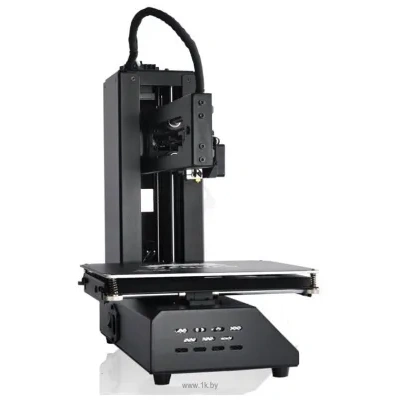

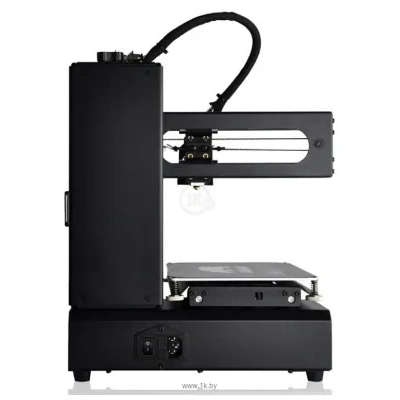

Wanhao Duplicator i3 Mini
Printing Technology: FDM, Accuracy on the X-axis, Y: 12 microns Materials: PLA, min. layer thickness: 100 microns Desktop: 135x120x100 mm Design: extruders: 1, Extruder temperature: 170 - 260 degC
Printing Technology: FDM, Accuracy on the X-axis, Y: 12 microns Materials: PLA, min. layer thickness: 100 microns Desktop: 135x120x100 mm Design: extruders: 1, Extruder temperature: 170 - 260 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
open-ended |
Frame material |
steel |
Min. layer thickness |
100 microns |
Printable material |
PLA |
Material Thickness |
1.75 mm |
Colors |
black |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
12 microns |
Extruder temperature |
170 — 260 °C |
Max. printing speed |
70 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
Button |
Interfaces |
USB, microSD/SD card |
File formats supported |
.gcode, .stl, .amf, .obj |
Cameras |
|
Work Desk |
|
Length of printing area |
135 mm |
Wideness of the printing area |
120 mm |
Height of the printing area |
100 mm |
Warm the table |
|
Components |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
325 mm |
Width |
240 mm |
Heights |
380 mm |
Weight (disambiguation) |
7 kg (disambiguation) |
