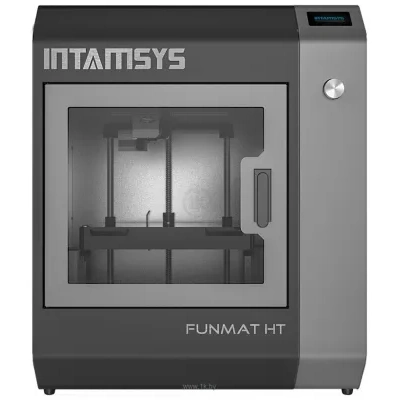

Printing Technology: FDM, Accuracy on the X-axis, Y: 25 microns, Z axis accuracy: 25 microns Materials: PLA, ABS, HIPS, PVA, Nylon, PC, PP, PETG, TPU, PEEK, Wood, ASA, min. layer thickness: 50 microns Desktop: 260 x 250 mm, table material: ceramics, heating the table Design: extruders: 1, Extruder temperature: 460 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
50 microns |
Printable material |
PLA, ABS, HIPS, PVA, Nylon, PC, PP, PETG, TPU, PEEK, Wood, ASA |
Material Thickness |
1.75 mm |
Colors |
black |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
25 microns |
Positioning accuracy of the axis Z |
25 microns |
Extruder temperature |
460 °C |
Max. printing speed |
200 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, microSD/SD card |
File formats supported |
.stl, .obj |
Cameras |
|
Pauses in printing |
|
Thread end detection sensor |
|
Work Desk |
|
Length of printing area |
260 mm |
Wideness of the printing area |
260 mm |
Height of the printing area |
260 mm |
Table material |
Ceramics |
Warm the table |
|
Temperature of the table |
160 °C |
Automated platform calibration |
|
Components |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
530 mm |
Width |
490 mm |
Heights |
650 mm |
Weight (disambiguation) |
43 kg (disambiguation) |
