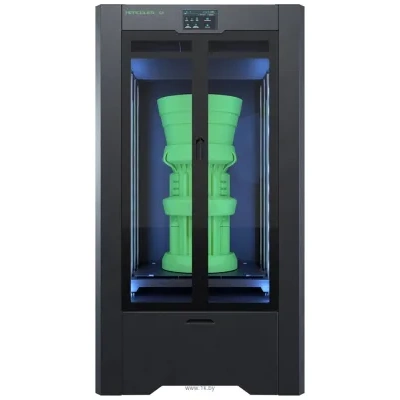

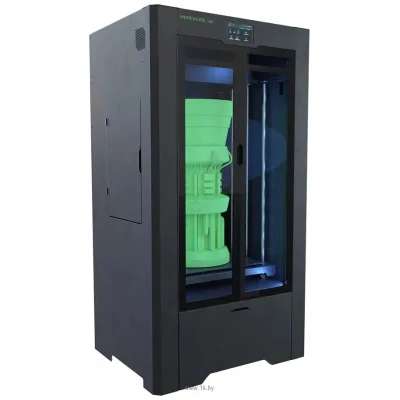

Printing Technology: FDM Materials: PLA, ABS, PP, PETG, TPU, PEEK, PEKK, WAX, Nylon (PA), min. layer thickness: 10 microns Desktop: 600x400 x900 mm, table material: glass, heating the table Design: extruders: 1, Extruder temperature: 420 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
10 micron |
Printable material |
PLA, ABS, PP, PETG, TPU, PEEK, PEKK, WAX, Nylon (PA) |
Material Thickness |
1.75 mm |
Colors |
black |
Technical Specifications |
|
Extruder temperature |
420 °C |
Max. printing speed |
125 mm/s |
Displays |
|
MANAGEMENT |
touchscreen display, mobile app |
Interfaces |
USB, Wi-Fi, Ethernet |
File formats supported |
.stl, .obj |
Cameras |
|
Pauses in printing |
|
Thread end detection sensor |
|
Work Desk |
|
Length of printing area |
600 mm |
Wideness of the printing area |
400 mm |
Height of the printing area |
900 mm |
Table material |
Glass |
Warm the table |
|
Temperature of the table |
150 °C |
Automated platform calibration |
|
Components |
|
Nozzle |
0.8 mm |
Dimensions and weight |
|
Length |
950 mm |
Width |
740 mm |
Heights |
1,750 mm |
