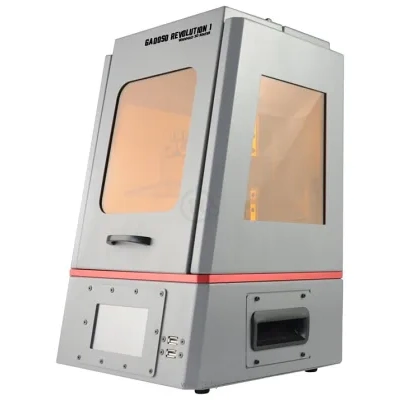

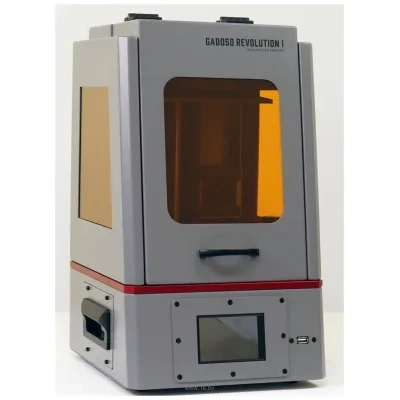

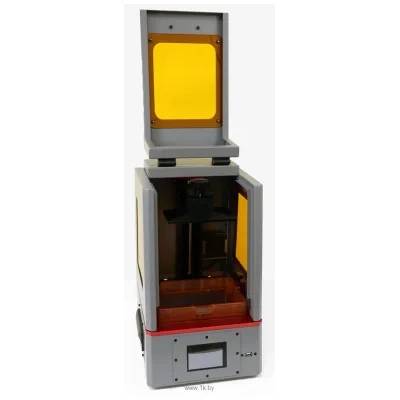

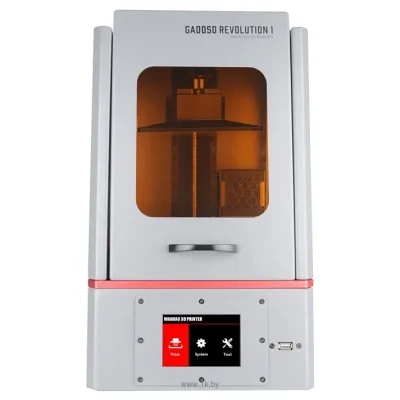

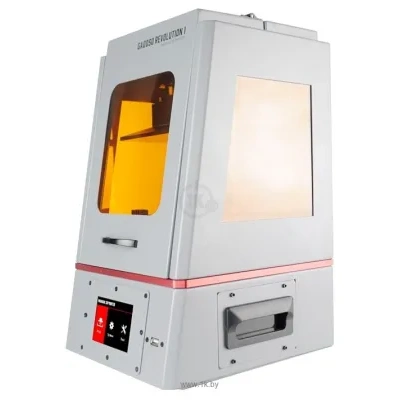

Wanhao Gadoso Revolution 1
Printing Technology: DLP, Accuracy on the X-axis, Y: 55 microns, Z axis accuracy: 35 microns Materials: Photopolymer, min. layer thickness: 35 microns Desktop: 140 x 78 x 200 mm
Printing Technology: DLP, Accuracy on the X-axis, Y: 55 microns, Z axis accuracy: 35 microns Materials: Photopolymer, min. layer thickness: 35 microns Desktop: 140 x 78 x 200 mm
General Characteristics |
|
Printing Technology |
DLP |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
35 microns |
Printable material |
Photopolymer |
Colors |
Grey |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
55 microns |
Positioning accuracy of the axis Z |
35 microns |
Color Prints |
|
Displays |
|
MANAGEMENT |

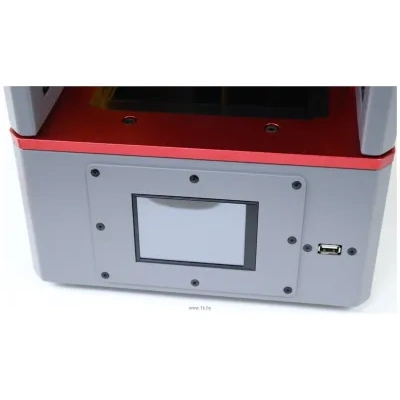

touchscreen display |
Interfaces |
USB |
File formats supported |
.stl |
Cameras |
|
Pauses in printing |
|
Work Desk |
|
Length of printing area |
140 mm |
Wideness of the printing area |
78 mm |
Height of the printing area |
200 mm |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
250 mm |
Width |
280 mm |
Heights |
450 mm |
Weight (disambiguation) |
12.5 kg |
