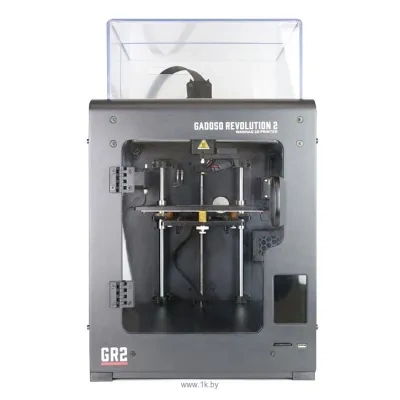

Printing Technology: FDM, Accuracy on the X-axis, Y: 50 microns, Z axis accuracy: 50 microns Materials: PLA, ABS, PETG, min. layer thickness: 100 microns Desktop: 200 x 175 mm, table material: aluminium, heating the table Design: extruders: 1, Extruder temperature: 180 - 260 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
100 microns |
Printable material |
PLA, ABS, PETG |
Material Thickness |
1.75 mm |
Power Utilized |
350 W |
Colors |
Grey |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
50 microns |
Positioning accuracy of the axis Z |
50 microns |
Extruder temperature |
180 — 260 °C |
Max. printing speed |
100 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |

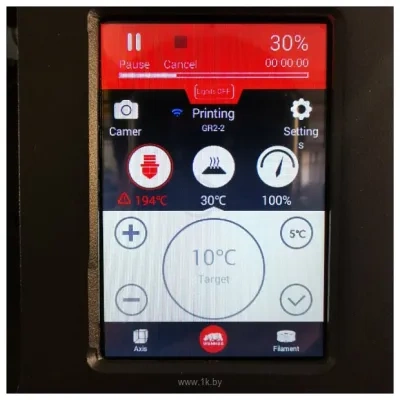

touchscreen display |
Interfaces |
USB, microSD/SD card, Wi-Fi, Ethernet |
File formats supported |
.stl, .amf, .obj |

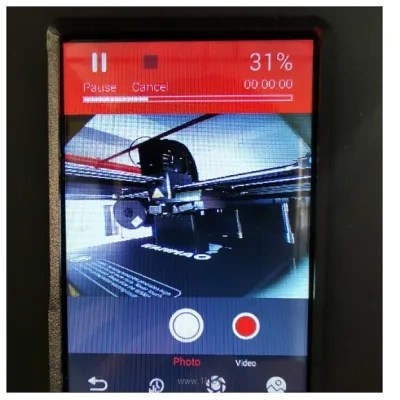

Cameras |
|
Pauses in printing |
|
Work Desk |
|
Length of printing area |
200 mm |
Wideness of the printing area |
200 mm |
Height of the printing area |
175 mm |
Table material |
Aluminium |
Warm the table |
|
Temperature of the table |
0 — 100 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
347 mm |
Width |
362 mm |
Heights |
477 mm |
Weight (disambiguation) |
13 kg (disambiguation) |
