Printing Technology: FDM, Accuracy on the X-axis, Y: 10 microns, Z axis accuracy: 2 microns Materials: PLA, ABS, HIPS, Wood, min. layer thickness: 50 microns Desktop: 255 x 210 mm, heating the table Design: extruders: 1, Extruder temperature: 210 - 260 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
closed-ended |
Min. layer thickness |
50 microns |
Printable material |
PLA, ABS, HIPS, Wood |
Material Thickness |
1.75 mm |
Colors |
black |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
10 micron |
Positioning accuracy of the axis Z |
2 microns |
Extruder temperature |
210 — 260 °C |
Max. printing speed |
150 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |

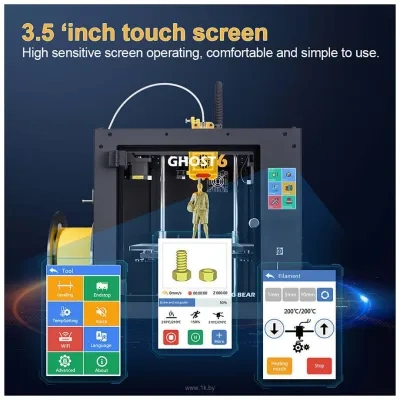

touch screen, joystick |
Interfaces |
USB, microSD/SD card, Wi-Fi |
File formats supported |
.stl, .amf, .obj, .dae |
Cameras |
|
Thread end detection sensor |
|
Work Desk |
|
Length of printing area |
255 mm |
Wideness of the printing area |
210 mm |
Height of the printing area |
210 mm |
Warm the table |
|
Temperature of the table |
60 — 110 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
377 mm |
Width |
365 mm |
Heights |
349 mm |
Weight (disambiguation) |
13 kg (disambiguation) |
