Printing Technology: FDM, Accuracy on the X-axis, Y: 12.5 microns, Z axis accuracy: 2 microns Materials: PLA, ABS, HIPS, TPU, min. layer thickness: 50 microns Desktop: 210x215x205 mm, heating the table Design: extruders: 1, Extruder temperature: 260 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
open-ended |
Frame material |
steel |
Min. layer thickness |
50 microns |
Printable material |
PLA, ABS, HIPS, TPU |
Material Thickness |
1.75 mm |
Colors |
black |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
12.5 microns |
Positioning accuracy of the axis Z |
2 microns |
Extruder temperature |
260 °C |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, microSD/SD card |
File formats supported |
.stl, .amf, .obj |
Cameras |
|
Pauses in printing |
|
Control of residual plasticity |
|
Thread end detection sensor |
|

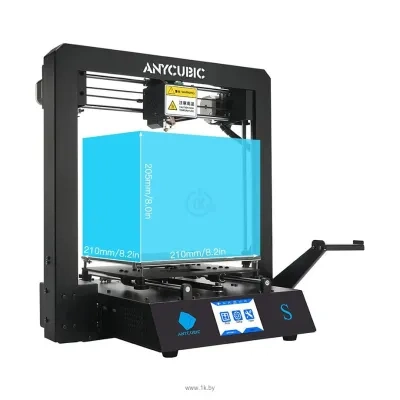

Work Desk |
|
Length of printing area |
210 mm |
Wideness of the printing area |
210 mm |
Height of the printing area |
205 mm |
Warm the table |
|
Temperature of the table |
110 °C |
Components |
|
Memory Cards |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
