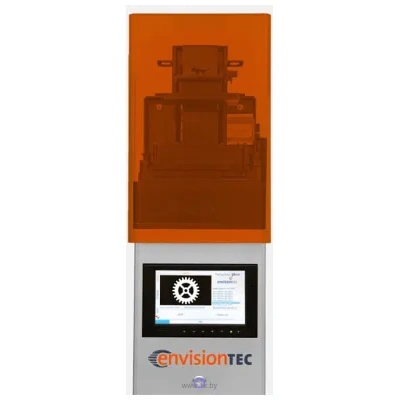

EnvisionTEC Micro Plus XL
Printing Technology: DLP, Accuracy on the X-axis, Y: 82 microns, Z axis accuracy: 25 microns Materials: Photopolymer, min. layer thickness: 25 microns Desktop: 120 x 74 x 85 mm
Printing Technology: DLP, Accuracy on the X-axis, Y: 82 microns, Z axis accuracy: 25 microns Materials: Photopolymer, min. layer thickness: 25 microns Desktop: 120 x 74 x 85 mm
General Characteristics |
|
Printing Technology |
DLP |
Corpus |
closed-ended |
Min. layer thickness |
25 microns |
Printable material |
Photopolymer |
Colors |
orange, grey |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
82 microns |
Positioning accuracy of the axis Z |
25 microns |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
Wi-Fi |
File formats supported |
.stl |
Cameras |
|
Work Desk |
|
Length of printing area |
120 mm |
Wideness of the printing area |
74 mm |
Height of the printing area |
85 mm |
Components |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
241.3 mm |
Width |
228.6 mm |
Heights |
708.7 mm |
Weight (disambiguation) |
16 kg (disambiguation) |
