Printing Technology: FDM, Accuracy on the X-axis, Y: 100 microns, Z axis accuracy: 100 microns Materials: PLA, ABS, PETG, TPU, Wood, Nylon (PA), min. layer thickness: 100 microns Desktop: 225 x 265 mm, heating the table Design: extruders: 1, Extruder temperature: 300 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
open-ended |
Frame material |
steel |
Min. layer thickness |
100 microns |
Printable material |
PLA, ABS, PETG, TPU, Wood, Nylon (PA) |
Material Thickness |
1.75 mm |
Colors |
black |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
100 microns |
Positioning accuracy of the axis Z |
100 microns |
Extruder temperature |
300 °C |
Max. printing speed |
500 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, Wi-Fi |
File formats supported |
.stl, .amf, .obj |
Cameras |
|
Pauses in printing |
|
Thread end detection sensor |
|
Work Desk |
|
Length of printing area |
225 mm |
Wideness of the printing area |
225 mm |
Height of the printing area |
265 mm |

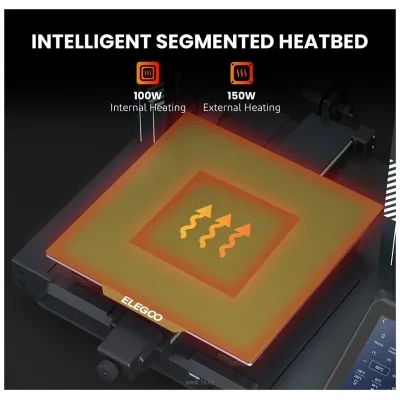

Warm the table |
|
Temperature of the table |
110 °C |

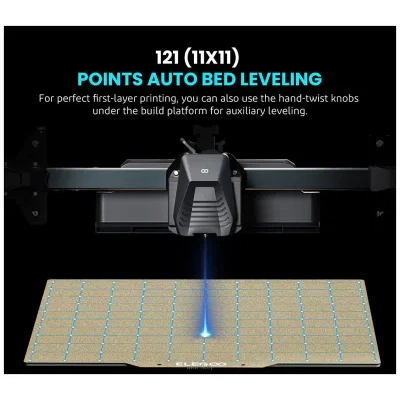

Automated platform calibration |
|
Components |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
475 mm |
Width |
455 mm |
Heights |
515 mm |
Weight (disambiguation) |
8.9 kg |
