Printing Technology: FDM, Accuracy on the X-axis, Y: 3.125 microns, Z axis accuracy: 0.8 microns Materials: PLA, ABS, HIPS, PVA, FLEX, Nylon, PP, TPU, PEEK, min. layer thickness: 50 microns Desktop: 440x300 x330 mm, table material: steel, heating the table Design: extruders: 1, Extruder temperature: 400 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
50 microns |
Printable material |
PLA, ABS, HIPS, PVA, FLEX, Nylon, PP, TPU, PEEK |
Power Utilized |
2,500 W |
Colors |
black |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
3.125 microns |
Positioning accuracy of the axis Z |
0.8 microns |
Extruder temperature |
400 °C |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, Wi-Fi |
File formats supported |
.stl, .obj |
Cameras |
|
Pauses in printing |
|

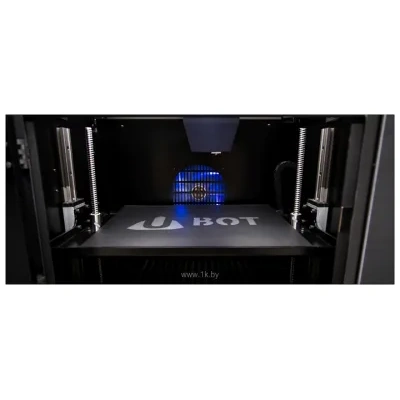

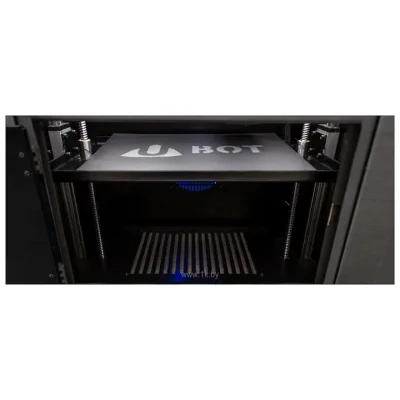

Work Desk |
|
Length of printing area |
440 mm |
Wideness of the printing area |
300 mm |
Height of the printing area |
330 mm |
Table material |
steel |
Warm the table |
|
Temperature of the table |
160 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
1 110 mm |
Width |
730 mm |
Heights |
605 mm |
Weight (disambiguation) |
160 kgs |
