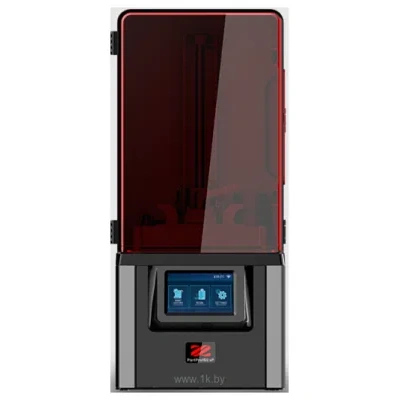

XYZprinting PartPro150 xP
Printing Technology: SLA, Accuracy on the X-axis, Y: 130 microns Materials: Photopolymer, min. layer thickness: 25 microns Desktop: 150 x 200 mm
Printing Technology: SLA, Accuracy on the X-axis, Y: 130 microns Materials: Photopolymer, min. layer thickness: 25 microns Desktop: 150 x 200 mm
General Characteristics |
|
Printing Technology |
SLA |
Corpus |
closed-ended |
Min. layer thickness |
25 microns |
Printable material |
Photopolymer |
Colors |
black, red |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
130 microns |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, Wi-Fi, Ethernet |
File formats supported |
.stl, .3w, .igs, .stp |
Cameras |
|
Work Desk |
|
Length of printing area |
150 mm |
Wideness of the printing area |
150 mm |
Height of the printing area |
200 mm |
Warm the table |
|
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
280 mm |
Width |
360 mm |
Heights |
625 mm |
Weight (disambiguation) |
15.5 kg |
