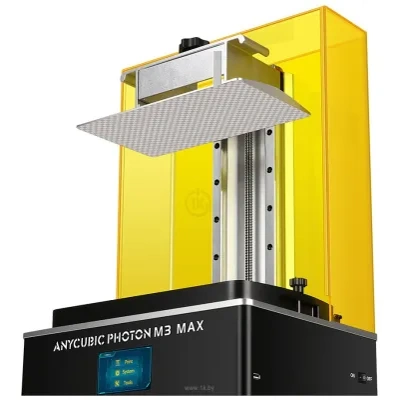

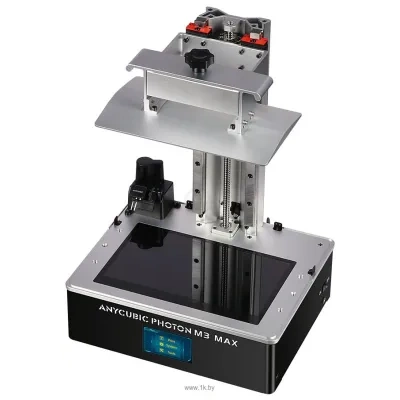

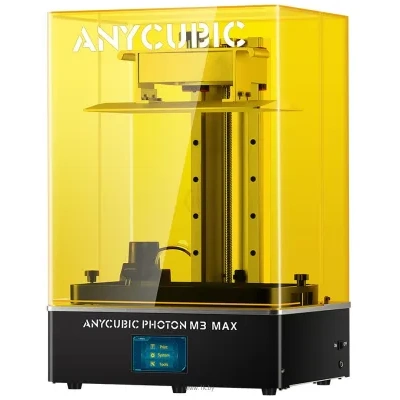

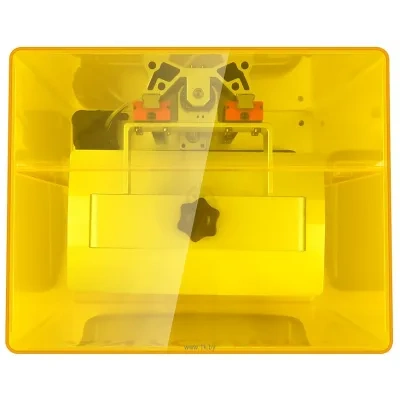

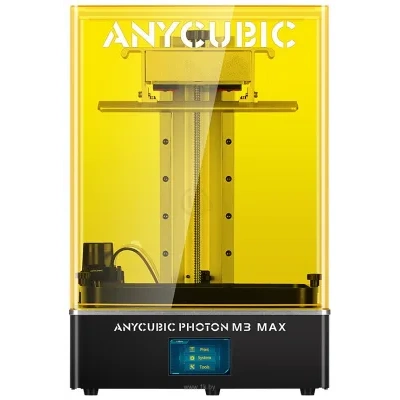

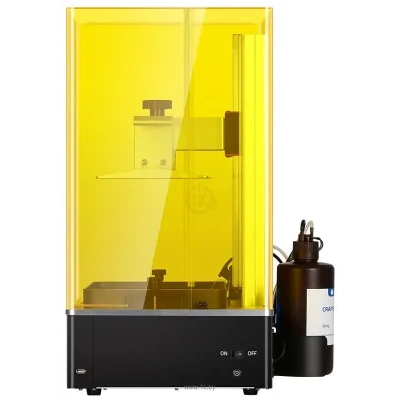

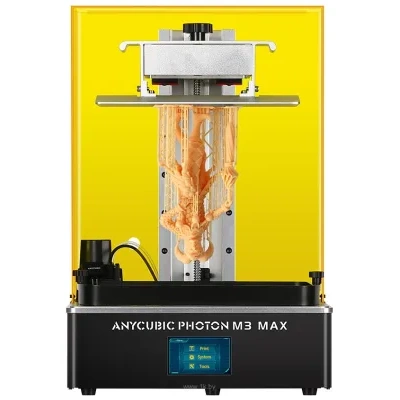

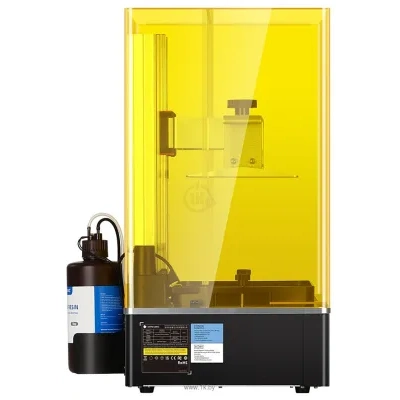

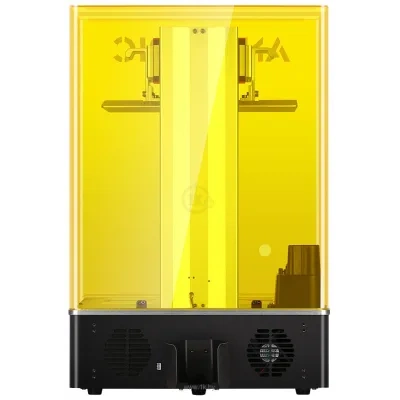

Anycubic Photon M3 Max
Printing Technology: SLA, Accuracy on the X-axis, Y: 46 microns, Z axis accuracy: 10 microns Materials: Photopolymer, min. layer thickness: 10 microns Desktop: 298 x 164 x 300 mm
Printing Technology: SLA, Accuracy on the X-axis, Y: 46 microns, Z axis accuracy: 10 microns Materials: Photopolymer, min. layer thickness: 10 microns Desktop: 298 x 164 x 300 mm
General Characteristics |
|
Printing Technology |
SLA |
Corpus |
closed-ended |
Min. layer thickness |
10 micron |
Printable material |
Photopolymer |
Power Utilized |
120 W |
Colors |
black, yellow |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
46 microns |
Positioning accuracy of the axis Z |
10 micron |
Max. printing speed |
0.016 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB |
Cameras |
|
Work Desk |
|
Length of printing area |
298 mm |
Wideness of the printing area |
164 mm |
Height of the printing area |
300 mm |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
408 mm |
Width |
400 mm |
Heights |
596 mm |
Weight (disambiguation) |
21 kg (disambiguation) |
