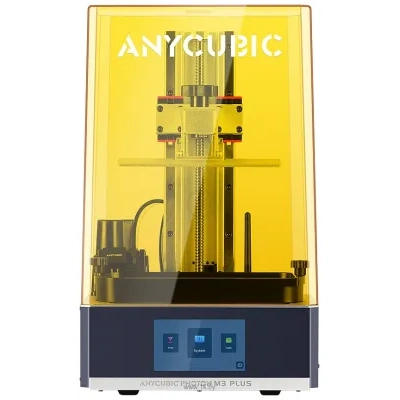

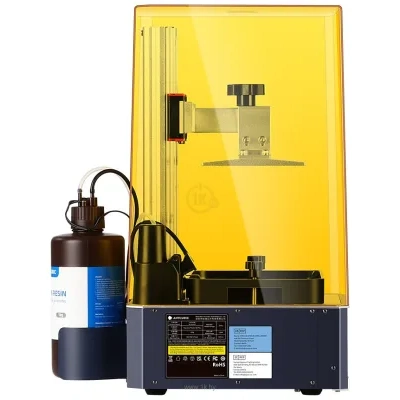

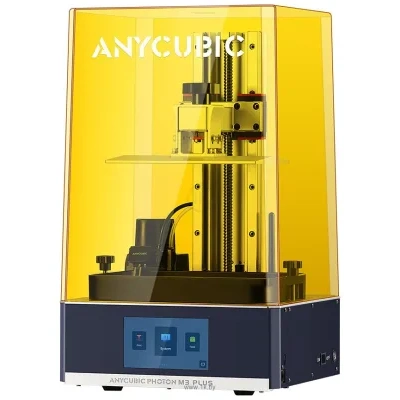

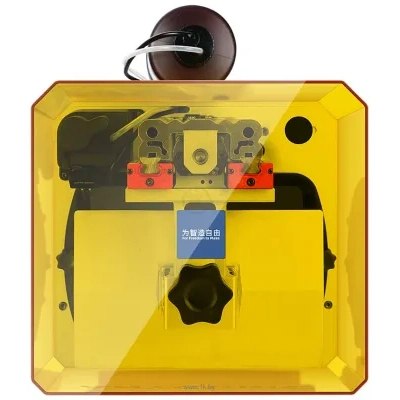

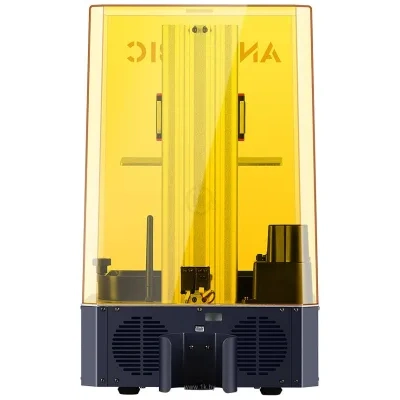

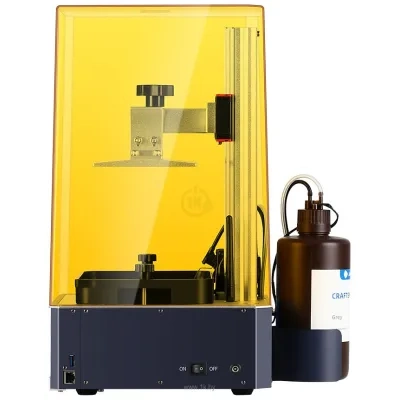

Anycubic Photon M3 Plus
Printing Technology: SLA, Accuracy on the X-axis, Y: 34 microns, Z axis accuracy: 10 microns Materials: Photopolymer, min. layer thickness: 10 microns Desktop: 197 x 122 x 245 mm
Printing Technology: SLA, Accuracy on the X-axis, Y: 34 microns, Z axis accuracy: 10 microns Materials: Photopolymer, min. layer thickness: 10 microns Desktop: 197 x 122 x 245 mm
General Characteristics |
|
Printing Technology |
SLA |
Corpus |
closed-ended |
Min. layer thickness |
10 micron |
Printable material |
Photopolymer |
Power Utilized |
144 W |
Colors |
black, yellow |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
34 microns |
Positioning accuracy of the axis Z |
10 micron |
Max. printing speed |
0.027 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, Wi-Fi, Ethernet |
Cameras |
|
Work Desk |
|
Length of printing area |
197 mm |
Wideness of the printing area |
122 mm |
Height of the printing area |
245 mm |
Warm the table |
|
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
360 mm |
Width |
290 mm |
Heights |
475 mm |
Weight (disambiguation) |
12 kgs |
