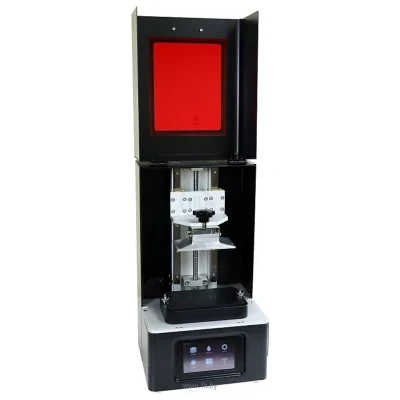

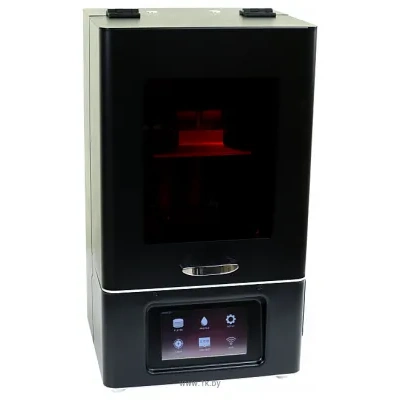

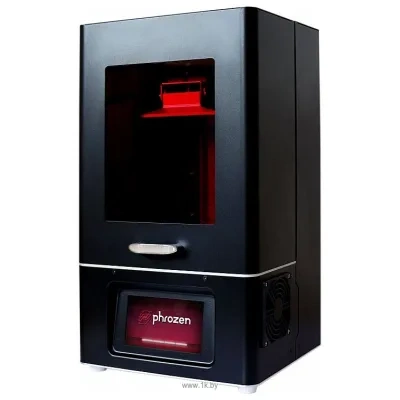

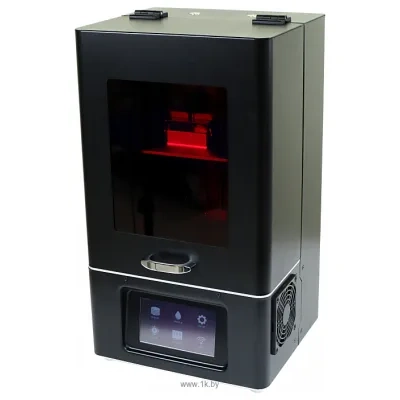

Phrozen Shuffle 2019
Printing Technology: DLP, Accuracy on the X-axis, Y: 47 microns, Z axis accuracy: 10 microns Materials: Photopolymer, min. layer thickness: 10 microns Desktop: 120 x 68 x 200 mm
Printing Technology: DLP, Accuracy on the X-axis, Y: 47 microns, Z axis accuracy: 10 microns Materials: Photopolymer, min. layer thickness: 10 microns Desktop: 120 x 68 x 200 mm
General Characteristics |
|
Printing Technology |
DLP |
Corpus |
closed-ended |
Min. layer thickness |
10 micron |
Printable material |
Photopolymer |
Power Utilized |
60 W |
Colors |
black |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
47 microns |
Positioning accuracy of the axis Z |
10 micron |
Color Prints |
|
Displays |
|
MANAGEMENT |

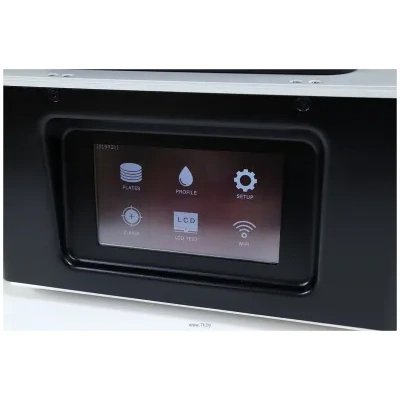

touchscreen display |
Interfaces |
USB, microSD/SD card, Wi-Fi, Ethernet |
File formats supported |
.stl |
Cameras |
|
Work Desk |
|
Length of printing area |
120 mm |
Wideness of the printing area |
68 mm |
Height of the printing area |
200 mm |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
280 mm |
Width |
280 mm |
Heights |
420 mm |
Weight (disambiguation) |
16 kg (disambiguation) |
