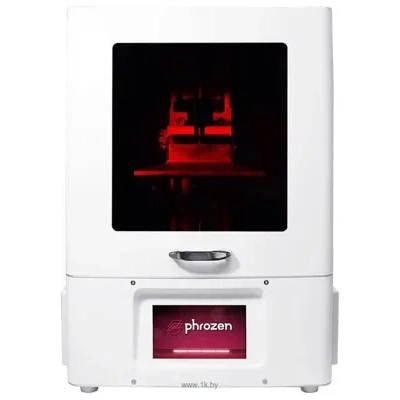

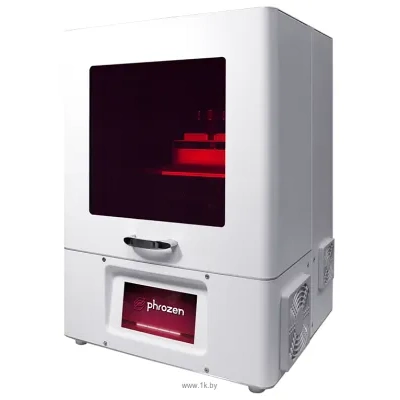

Phrozen Sonic XL 4K
Printing Technology: DLP, Accuracy on the X-axis, Y: 50 microns, Z axis accuracy: 10 microns Materials: Photopolymer, min. layer thickness: 10 microns Desktop: 190x120x200 mm
Printing Technology: DLP, Accuracy on the X-axis, Y: 50 microns, Z axis accuracy: 10 microns Materials: Photopolymer, min. layer thickness: 10 microns Desktop: 190x120x200 mm
General Characteristics |
|
Printing Technology |
DLP |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
10 micron |
Printable material |
Photopolymer |
Colors |
White |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
50 microns |
Positioning accuracy of the axis Z |
10 micron |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, microSD/SD card, Wi-Fi, Ethernet |
File formats supported |
.phz, .zip |
Cameras |
|
Work Desk |
|
Length of printing area |
190 mm |
Wideness of the printing area |
120 mm |
Height of the printing area |
200 mm |
Components |
|
Memory Cards |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
290 mm |
Width |
330 mm |
Heights |
470 mm |
Weight (disambiguation) |
19.5 kg |
