Printing Technology: FDM, Accuracy on the X-axis, Y: 11 microns, Z axis accuracy: 2.5 microns Materials: PLA, ABS, FLEX, Nylon, PETG, SBS, TPE, min. layer thickness: 50 microns Desktop: 300 x 400 mm, table material: aluminium, heating the table Design: extruders: 1, Extruder temperature: 240 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
open-ended |
Frame material |
steel |
Min. layer thickness |
50 microns |
Printable material |
PLA, ABS, FLEX, Nylon, PETG, SBS, TPE |
Material Thickness |
1.75 mm |
Colors |
White |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
11 microns |
Positioning accuracy of the axis Z |
2.5 microns |
Extruder temperature |
240 °C |
Max. printing speed |
120 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
USB, microSD/SD card |
File formats supported |
.gcode, .stl, .obj |
Cameras |
|
Pauses in printing |
|

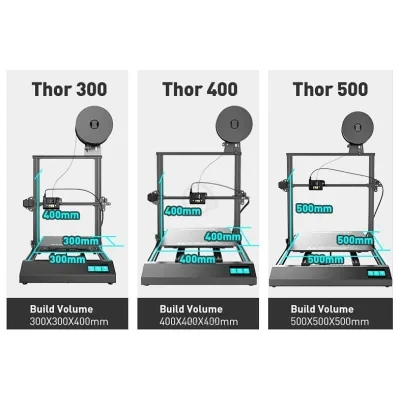

Work Desk |
|
Length of printing area |
300 mm |
Wideness of the printing area |
300 mm |
Height of the printing area |
400 mm |
Table material |
Aluminium |
Warm the table |
|
Temperature of the table |
100 °C |
Automated platform calibration |
|

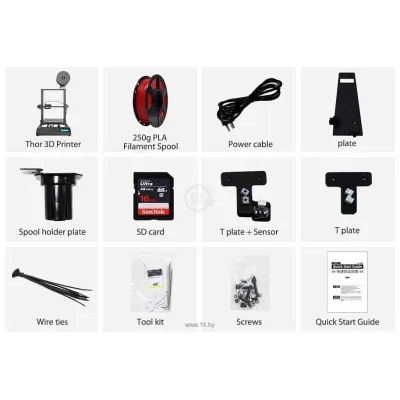

Components |
|
Memory Cards |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
605 mm |
Width |
538 mm |
Heights |
662 mm |
Weight (disambiguation) |
14 kg (disambiguation) |
