Printing Technology: FDM, Accuracy on the X-axis, Y: 2 microns, Z axis accuracy: 0.5 microns Materials: ABS, PVA, TPU, min. layer thickness: 50 microns Desktop: 255 x 205 mm, table material: glass, heating the table Design: extruders: 1, Extruder temperature: 299 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
closed-ended |
Frame material |
steel |
Min. layer thickness |
50 microns |
Printable material |
ABS, PVA, TPU |
Material Thickness |
1.75 mm |
Power Utilized |
220 W |
Colors |
black, grey |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
2 microns |
Positioning accuracy of the axis Z |
0.5 microns |
Extruder temperature |
299 °C |
Max. printing speed |
200 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |

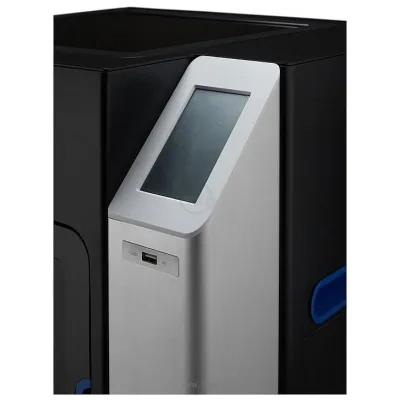

touchscreen display |
Interfaces |
USB, Wi-Fi, Ethernet |
File formats supported |
.stl, .obj, .3mf, .ply |
Cameras |
|
Pauses in printing |
|
Work Desk |
|
Length of printing area |
255 mm |
Wideness of the printing area |
205 mm |
Height of the printing area |
255 mm |
Table material |
Glass |
Warm the table |
|
Temperature of the table |
100 °C |
Automated platform calibration |
|
Components |
|
Memory Cards |
|
Nozzle |
.4, 0.6, 2 mm |
Dimensions and weight |
|
Length |
500 mm |
Width |
523 mm |
Heights |
460 mm |
Weight (disambiguation) |
30 kg (disambiguation) |
