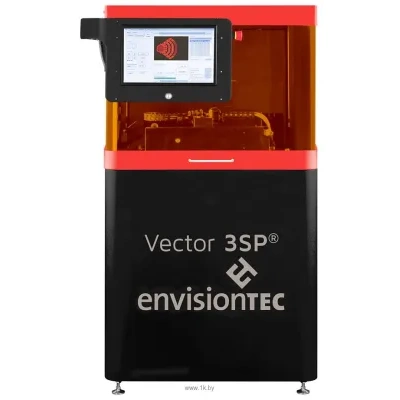

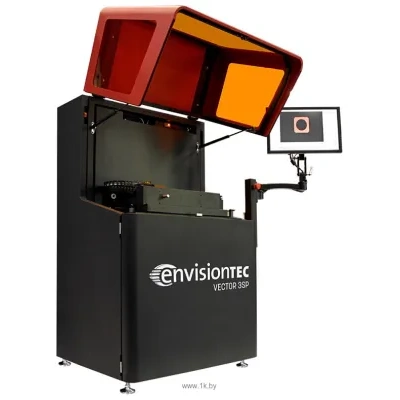

EnvisionTEC Vector 3SP
Printing Technology: SLA, Accuracy on the X-axis, Y: 100 microns, Z axis accuracy: 50 microns Materials: Photopolymer, min. layer thickness: 50 microns Desktop: 300x200 x275 mm
Printing Technology: SLA, Accuracy on the X-axis, Y: 100 microns, Z axis accuracy: 50 microns Materials: Photopolymer, min. layer thickness: 50 microns Desktop: 300x200 x275 mm
General Characteristics |
|
Printing Technology |
SLA |
Corpus |
closed-ended |
Min. layer thickness |
50 microns |
Printable material |
Photopolymer |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
100 microns |
Positioning accuracy of the axis Z |
50 microns |
Displays |
|
MANAGEMENT |
touchscreen display |
File formats supported |
.stl |
Work Desk |
|
Length of printing area |
300 mm |
Wideness of the printing area |
200 mm |
Height of the printing area |
275 mm |
Components |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
740 mm |
Width |
760 mm |
Heights |
1,170 mm |
Weight (disambiguation) |
192 kg |
