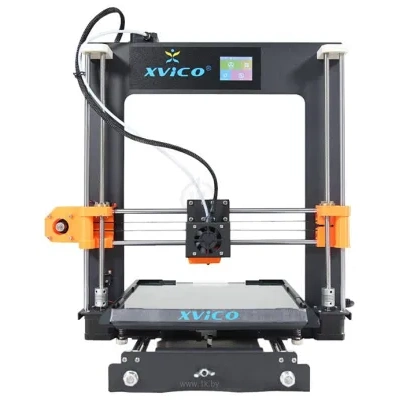

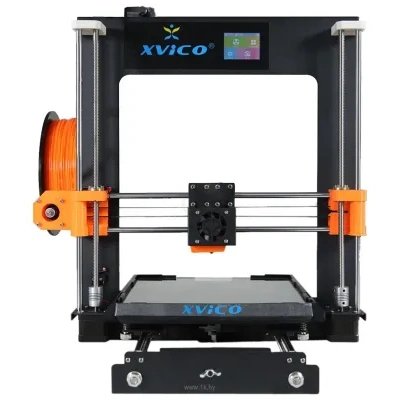

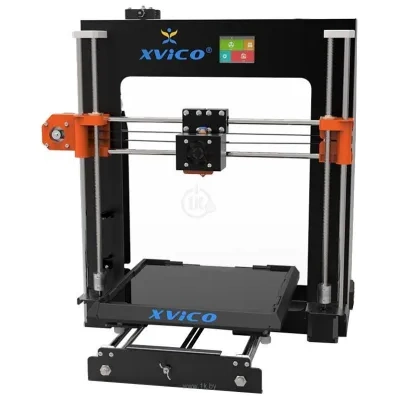

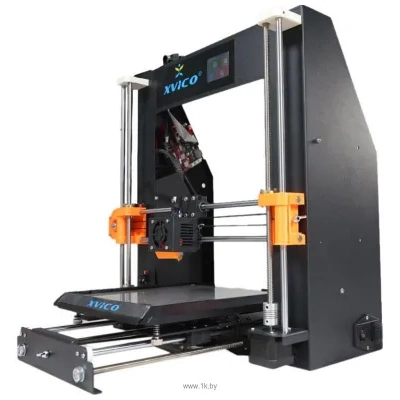

Xvico X1 Pioneer
Printing Technology: FDM, Accuracy on the X-axis, Y: 12 microns, Z axis accuracy: 2.5 microns Materials: PLA, min. layer thickness: 100 microns Desktop: 220 x 240 mm Design: extruders: 1, Extruder temperature: 160 - 250 degC
Printing Technology: FDM, Accuracy on the X-axis, Y: 12 microns, Z axis accuracy: 2.5 microns Materials: PLA, min. layer thickness: 100 microns Desktop: 220 x 240 mm Design: extruders: 1, Extruder temperature: 160 - 250 degC
General Characteristics |
|
Printing Technology |
FDM |
Number of extruders |
1 |
Corpus |
open-ended |
Frame material |
Aluminium |
Min. layer thickness |
100 microns |
Printable material |
PLA |
Material Thickness |
1.75 mm |
Colors |
black |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
12 microns |
Positioning accuracy of the axis Z |
2.5 microns |
Extruder temperature |
160 — 250 °C |
Max. printing speed |
200 mm/s |
Color Prints |
|
Displays |
|
MANAGEMENT |
touchscreen display |
Interfaces |
microSD/SD card |
Cameras |
|
Pauses in printing |
|
Work Desk |
|
Length of printing area |
220 mm |
Wideness of the printing area |
220 mm |
Height of the printing area |
240 mm |
Warm the table |
|
Automated platform calibration |
|
Components |
|
Nozzle |
0.4 mm |
Requires assemblies |
|
Dimensions and weight |
|
Length |
400 mm |
Width |
390 mm |
Heights |
450 mm |
