Printing Technology: FDM, Accuracy on the X-axis, Y: 7 microns, Z axis accuracy: 1.5 microns Materials: PLA, ABS, HIPS, FLEX, PETG, TPU, SBS, ASA, Nylon (PA), min. layer thickness: 50 microns Desktop: 230x180x200 mm, table material: glass, heating the table Design: extruder temperature: 299 degC
General Characteristics |
|
Printing Technology |
FDM |
Corpus |
closed-ended |
Min. layer thickness |
50 microns |
Printable material |
PLA, ABS, HIPS, FLEX, PETG, TPU, SBS, ASA, Nylon (PA) |
Material Thickness |
1.75 mm |
Power Utilized |
220 W |
Colors |
White |
Technical Specifications |
|
Positioning accuracy of the axis X, Y |
7 microns |
Positioning accuracy of the axis Z |
1.5 microns |
Extruder temperature |
299 °C |
Color Prints |
|
Displays |
|
MANAGEMENT |

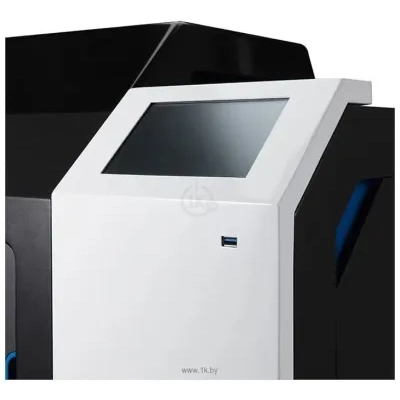

touchscreen display |
Interfaces |
USB, Wi-Fi, Ethernet |
File formats supported |
.stl, .obj, .3mf, .ply, .3ds, .off, .tsk, .up3, .ups |
Cameras |
|
Pauses in printing |
|
Thread end detection sensor |
|
Work Desk |
|
Length of printing area |
230 mm |
Wideness of the printing area |
180 mm |
Height of the printing area |
200 mm |
Table material |
Glass |
Warm the table |
|
Temperature of the table |
100 °C |
Automated platform calibration |
|
Components |
|
Requires assemblies |
|
Dimensions and weight |
|
Length |
850 mm |
Width |
625 mm |
Heights |
520 mm |
Weight (disambiguation) |
52 kg (disambiguation) |
